Cook® ERCP Catheters

  • Additional Information
  • Ordering Information

Glo-Tip® ERCP Catheter/ERCP Catheter with Radiopaque Bands

Order NumberTipCatheter Diameter/LengthStyletWire Guide* DiameterMinimum Accessory Channel
CK-GT-1Standard 5.0Fr5.5Fr / 200cm100cm.035 inch2.8mm
CK-GT-1-Ttaper to 4.5Fr5.5Fr / 200cm100cm.035 inch2.8mm
CK-GT-1-STShort taper to 3.5Fr5.5Fr / 200cm100cm.035 inch2.8mm
CK-GT-1-T-ANGAngled taper to 4.5Fr5.5Fr / 200cm100cm.035 inch2.8mm
CK-GT-1-LTLong taper to 3.5Fr5.5Fr / 200cm100cm.035 inch2.8mm
CK-GT-1-UTUltra taper to 4Fr5.5Fr / 200cm100cm.035 inch2.8mm
CK-GT-5-4-3Pre-curved graduated taper from 5.5 to 3Fr5.5Fr / 200cm100cm.035 inch2.8mm
CK-GT-1-T-RBTaper to 4.5Fr with radiopaque bands at 5, 7, 9, and 12cm5.5Fr / 200cm100cm.035 inch2.8mm

Glo-Tip II Double Lumen ERCP Catheter

Order NumberTipCatheter Diameter/LengthStyletWire Guide* DiameterMinimum Accessory Channel
CK-GT-2-TDome6.0Fr / 200cm100cm.035 inch2.8mm
CK-GT-2-T-ANGDome6.0Fr / 200cm100cm.035 inch2.8mm
CK-GT-2-T-RBDome with radiopaque bands 5, 7, 9, and 12cm6.0Fr / 200cm100cm.035 inch2.8mm

*Recommended Tracer Metro Direct Wire Guide sold separately

Haber RAMP™ Catheter

Order NumberCatheter Diameter French SizeCatheter LengthCatheter diameter/LengthWire Guide* DiameterMinimum Accessory Channel
CK-HRC-18.0 – 6.0200cmRadiopaque tip & side ramp.035 inch3.2mm

*Recommended Tracer Metro Direct Wire Guide sold separately

Side Arm Adapter

Order NumberDescription
CK-DSA-1Non-Rotating
CK-DSA-RARotatable

*Recommended Tracer Metro Direct Wire Guide sold separately

Cook® ERCP Catheters



Glo-Tip® ERCP Catheter/ERCP Catheter with Radiopaque Bands

  • Single lumen ERCP catheter used for endoscopic cannulation of the ductal system
  • The Glo-Tip ERCP Catheters allow injection of contrast or provides the ability to maintain wire guide access to the desired duct for the introduction of compatible devices
  • The device is supplied sterile and is disposable – intended for single use only

Glo-Tip II Double Lumen ERCP Catheter

  • Double lumen catheter used for endoscopic cannulation of the ductal system featuring DomeTip technology
  • The double lumen feature allows injection of contrast while providing wire guide access to the desired duct. All catheters have three etched markings at the radiopaque distal tip.
  • Used for endoscopic cannulation of the ductal system
  • The device is supplied sterile and is disposable – intended for single use only

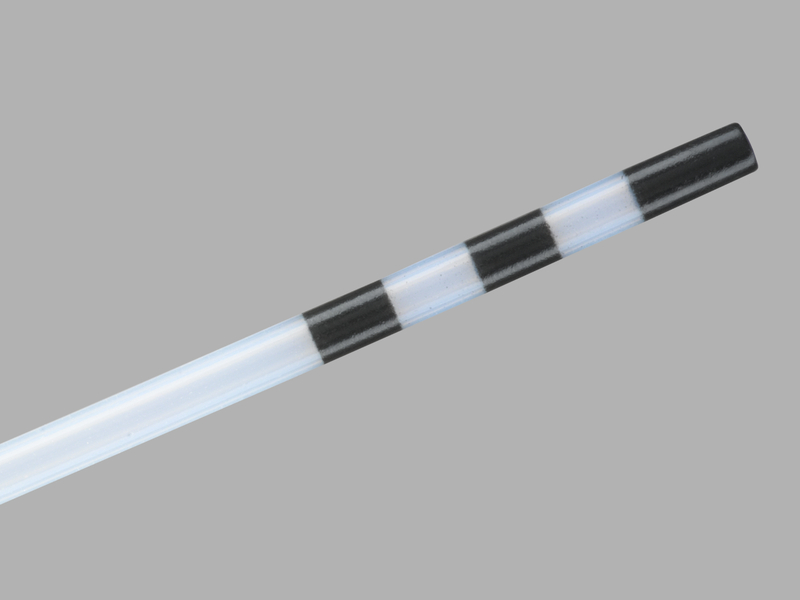

Classic ERCP Catheter

  • Used for endoscopic cannulation of the ductal system
  • The Classic ERCP Catheter allows injection of contrast or provides the ability to maintain wire guide access to the desired duct for the introduction of compatible devices. All catheters have three, 3mm markings at the distal tip
  • This device is supplied sterile and is reusable if the device integrity is intact

Haber RAMP™ Catheter

  • Used for endoscopic cannulation of the ductal system
  • The triple lumen feature allows injection of contrast while providing wire guide access to the desired duct
  • The device is supplied sterile and is disposable – intended for single use only

Side Arm Adapter

  • Used for injection of sterile water or contrast through catheters during wire guide use
  • The device is supplied sterile and is disposable – intended for single use only
