Cook® Plastic Biliary Stents and Introducers

Oasis® One Action Stent Introduction System

• Used for endoscopic stent placement to drain obstructed biliary ducts
• The Oasis is compatible with ST-2 Soehendra Tannenbaum®, Cotton-Huibregtse® and Cotton-Leung® stents
• Available with or without pre-loaded stent
• The device is supplied sterile and is disposable – intended for single use only

Order Number	Pushing Catheter French Size / Length	Guiding Catheter French Size / Length	Guiding Catheter Radiopaque Bands	Wire Guide* Diameter	Minimum Accessory Channel
CK-OA-8.5	8.5 / 170cm	5.0 / 205cm	Four Bands at 5cm Apart	.035 inch	3.2mm
CK-OA-10	10.0 / 170cm	6.0 / 205cm	Four Bands at 5cm Apart	.035 inch	3.7mm
CK-OA-11.5	11.0 / 170cm	6.0 / 205cm	Four Bands at 5cm Apart	.035 inch	4.2mm

*Recommended Tracer Metro Direct wire guide sold separately. Not for use with pigtail stents.
Includes a pushing catheter and guiding catheter.

Stent Introducer Sets

• Used for endoscopic stent placement to drain obstructed biliary ducts
• The device is supplied sterile and is disposable – intended for single use only

Order Number	Guiding Catheter French Size	Guiding Catheter Length	Pushing Catheter French Size	Pushing Catheter Length	Wire Guide* Diameter	Minimum Accessory Channel
CK-SIS-8.5	5.0	320cm	8.5	170cm	.035 inch	3.2mm
CK-SIS-10	6.0	320cm	10.0	170cm	.035 inch	3.2mm
CK-SIS-11.5	6.0	320cm	11.0	170cm	.035 inch	3.2mm

*Recommended Tracer Metro Direct wire guide sold separately. Stents sold separately

Pushing Catheter

• Used for endoscopic biliary stent placement to drain obstructed bile ducts
• The device is supplied sterile and is disposable – intended for single use only

Order Number	Pushing Catheter French Size	Pushing Catheter Length	Wire Guide* Diameter	Minimum Accessory Channel
CK-PC-3	3.0	170cm	.018 inch	2.0mm
CK-PC-5	5.0	170cm	.035 inch	2.0mm
CK-PC-7	7.0	170cm	.035 inch	2.8mm
CK-PC-8.5	8.5	170cm	.035 inch	3.2mm
CK-PC-10	10.0	170cm	.035 inch	3.7mm
CK-PC-11.5	11.5	170cm	.035 inch	4.2mm

*Recommended Tracer Metro Direct or Roadrunner wire guide sold separately. Stents sold separately

Guiding Catheter

• Used for endoscopic biliary stent placement
• Introducer components include a wire guide (if applicable), pushing catheter, and guiding catheter (not included with 7 French and smaller stent introducer sets)

Order Number	Guiding Catheter French Size	Guiding Catheter Length	Compatible Stent** French Size	Wire Guide* Diameter
CK-GC-5	5.0	320cm	8.5	.035 inch
CK-GC-6	6.0	320cm	10.0 – 11.5	.035 inch

*Recommended Tracer Metro Direct wire guide sold separately
**Stent sold separately

Soehendra® Stent Retriever

• Used to cannulate and remove stents from the biliary and pancreatic ducts while maintain wire guide placement
• The device is supplied sterile and is disposable – intended for single use only

Order Number	Retrieved Stent French Size	Stent Retriever Length	Wire Guide* Diameter	Minimum Accessory Channel
CK-SSR-5	5.0	180cm	.021 inch	2.8mm
CK-SSR-7	7.0	180cm	.035 inch	2.8mm
CK-SSR-8.5	8.5	180cm	.035 inch	3.2mm
CK-SSR-10	10.0	180cm	.035 inch	3.7mm
CK-SSR-11.5	11.5	180cm	.035 inch	4.2mm

*Recommended Tracer Metro Direct wire guide sold separately
**Stent sold separately

Cotton-Leung® (Amsterdam) Biliary Stent Sets or Stent Only

• Used to drain obstructed biliary ducts
• Each stent is recommended for use with stent introducer
• The positioning sleeve included with this set is used to collapse the duodenal flap on the stent to aid introduction into the endoscope channel
• The device is supplied sterile and is disposable – intended for single use only

Cotton-Leung® (Amsterdam) Sof-Flex® Biliary Stent Only

• Used to drain obstructed biliary ducts
• Made of soft, pliable Sof-Flex radiopaque material for strength and flexibility
• Each stent is recommended for use with stent introducer
• The positioning sleeve included with this set is used to collapse the duodenal flap on the stent to aid introduction into the endoscope channel
• The device is supplied sterile and is disposable – intended for single use only

ST-2 Soehendra Tannenbaum® Biliary Stent

• Used to drain obstructed biliary ducts
• The positioning sleeve included with this stent is used to collapse the duodenal flap on the stent to aid introduction into the endoscope channel
• The device is supplied sterile and is disposable – intended for single use only

Order Number	Stent French Size	Stent Length*
CK-TTSO-8.5-5	8.5	5cm
CK-TTSO -8.5-6	8.5	6cm
CK-TTSO -8.5-7	8.5	7cm
CK-TTSO -8.5-8	8.5	8cm
CK-TTSO -8.5-9	8.5	9cm
CK-TTSO -8.5-10	8.5	10cm
CK-TTSO -8.5-11	8.5	11cm
CK-TTSO -8.5-12	8.5	12cm
CK-TTSO -8.5-13	8.5	13cm
CK-TTSO -8.5-14	8.5	14cm
CK-TTSO -8.5-15	8.5	15cm
CK-TTSO -10-5	10	5cm
CK-TTSO -10-6	10	6cm
CK-TTSO -10-7	10	7cm
CK-TTSO -10-8	10	8cm
CK-TTSO -10-9	10	9cm
CK-TTSO -10-10	10	10cm
CK-TTSO -10-11	10	11cm
CK-TTSO -10-12	10	12cm
CK-TTSO -10-13	10	13cm
CK-TTSO -10-14	10	14cm
CK-TTSO -10-15	10	15cm
CK-TTSO -10-15	10	15cm
CK-TTSO -11.5-5	11.5	5cm
CK-TTSO -11.5-6	11.5	6cm
CK-TTSO -11.5-7	11.5	7cm
CK-TTSO -11.5-8	11.5	8cm
CK-TTSO -11.5-9	11.5	9cm
CK-TTSO -11.5-10	11.5	10cm
CK-TTSO -11.5-11	11.5	11cm
CK-TTSO -11.5-12	11.5	12cm
CK-TTSO -11.5-13	11.5	13cm
CK-TTSO -11.5-14	11.5	14cm
CK-TTSO -11.5-15	11.5	15cm

*Length measured between flaps
**Recommended for use with the Oasis® One Action Stent Introducer System, sold separately

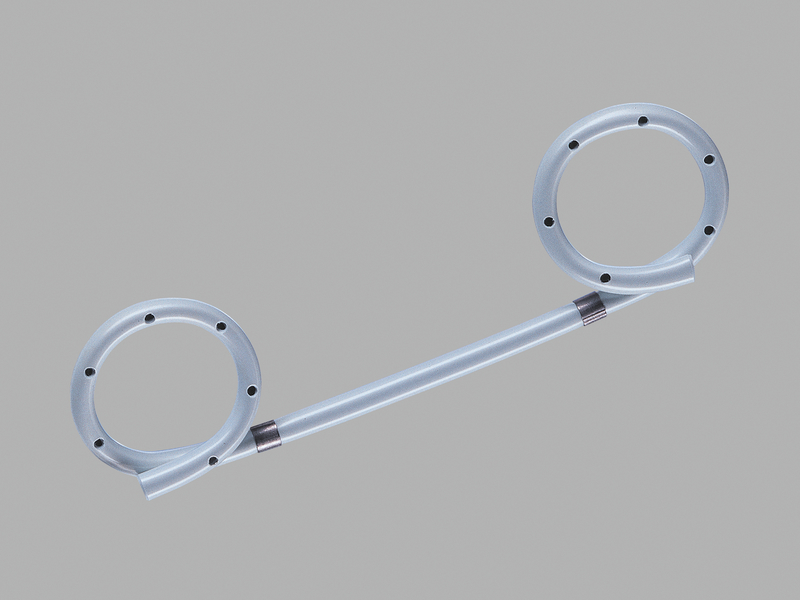

Solus® Double Pigtail Stent with Introducer

• Used to drain obstructed biliary ducts
• Made of soft, pliable Sof-Flex radiopaque material for strength and flexibility
• Enhanced fluoroscopic visualisation for positioning with two radiopaque bands
• Each stent is recommended for use with the Solus Stent Introducer System, which includes a pushing catheter and pigtail straightener (if applicable)
• The device is supplied sterile and is disposable – intended for single use only

Order Number	Pushing Catheter Size / Length	Guiding Catheter Size / Length	Stent French Size	Stent Length**	Wire Guide* Diameter
CK-ZSS-10-1-RB	10Fr / 165cm	5Fr / 210cm	10	1cm	.035 inch
CK-ZSS -10-3-RB	10Fr / 165cm	5Fr / 210cm	10	3cm	.035 inch
CK-ZSS -10-4-RB	10Fr / 165cm	5Fr / 210cm	10	4cm	.035 inch
CK-ZSS-10-5-RB	10Fr / 165cm	5Fr / 210cm	10	5cm	.035 inch
CK-ZSS -10-7-RB	10Fr / 165cm	5Fr / 210cm	10	7cm	.035 inch
CK-ZSS -10-9-RB	10Fr / 165cm	5Fr / 210cm	10	9cm	.035 inch
CK-ZSS-10-10-RB	10Fr / 165cm	5Fr / 210cm	10	10cm	.035 inch
CK-ZSS-10-12-RB	10Fr / 165cm	5Fr / 210cm	10	12cm	.035 inch
CK-ZSS-10-15-RB	10Fr / 165cm	5Fr / 210cm	10	15cm	.035 inch

*Recommended Tracer Metro Direct wire guide sold separately
**Length measured from base to base of pigtails

Zimmon® Biliary Stent Sets or Stent Only

• Used to drain obstructed biliary ducts
• Each stent is recommended for use with stent introducer components including a pushing catheter
• The pigtail straightener included with this stent is used to aid the loading of this stent onto the introducer
• This device is supplied sterile and is disposable – intended for single use only

Zimmon Biliary Stent Only

Order Number	Stent French Size	Stent Length*
CK-ZSO-5-4	5	4cm
CK-ZSO -5-7	5	7cm
CK-ZSO -5-10	5	10cm
CK-ZSO-6-4	6	4cm
CK-ZSO -6-7	6	7cm
CK-ZSO -6-10	6	10cm
CK-ZSO-7-4	7	4cm
CK-ZSO -7-7	7	7cm
CK-ZSO -7-10	7	10cm
CK-ZSO-10-4	10	4cm
CK-ZSO -10-7	10	7cm
CK-ZSO -10-10	10	10cm

*Length measured from base to base of pigtails
**Recommended for use with Stent Introducer Set or Pushing Catheter, sold separately.

Zimmon Biliary Stent Set

Order Number	Stent French Size	Stent Length**	Pushing Catheter Length	Wire Guide* Diameter
CK-ZEBD-5-4	5	4cm	170cm	.035 inch
CK-ZEBD -5-7	5	7cm	170cm	.035 inch
CK-ZEBD -5-10	5	10cm	170cm	.035 inch
CK-ZEBD -6-4	6	4cm	170cm	.035 inch
CK-ZEBD -6-7	6	7cm	170cm	.035 inch
CK-ZEBD -6-10	6	10cm	170cm	.035 inch
CK-ZEBD -7-4	7	4cm	170cm	.035 inch
CK-ZEBD -7-7	7	7cm	170cm	.035 inch
CK-ZEBD -7-10	7	10cm	170cm	.035 inch
CK-ZEBD -10-4	10	4cm	170cm	.035 inch
CK-ZEBD -10-7	10	7cm	170cm	.035 inch
CK-ZEBD -10-10	10	10cm	170cm	.035 inch

*Recommended Tracer Metro Direct wire guide sold separately
**Length measured from base to base of pigtails
