Product Information

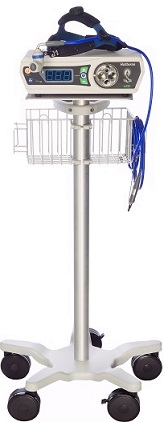

High-Intensity LED Light Source – A New Beginning in Surgical Illumination

Tested and cleared for use with headlights and endoscopes*, Hatteras™ is designed to perform when failure is not an option. Its robust and ergonomic features make for a powerful and dependable light source that sustains brightness and K color levels well beyond 10,000 hours, reducing costly bulb changes.

Hatteras™ provides a unique standby feature: when a fiber optic cable is removed from the port, illumination stops – eliminating distracting light in the OR. Simply replace the cable in the proper port, press the standby keypad and Hatteras™ instantaneously illuminates. Its custom milled, 4-port stainless steel turret accepts BFW™/ACMI, Olympus, Storz and Wolf cables.

Additional Features

  • 3 digit LED Brightness Display
  • Compatible with BFW™ Mobile Stand or Stackable with Most Endoscopic Carts and Booms
  • Push Button Membrane with Controls for Fower, Standby, Brightness Up/Down, Display Brightness Levels
  • Overheating Prevention System That Shuts Down the Unit in the Event Device Gets Too Hot and Will Enable Fans to Cool The LED
  • 1-year Limited Manufacturer’s Warranty with Extended Warranty Options Available

Safety, Regulatory Compliance

  • IEC 60601-1 (ed. 4)
  • IEC 60601‐1‐2-18 (ed. 3)
  • ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10)
  • CAN/CSA-C22.2 NO. 60601-1 (2008)
  • CE

Electrical Specifications

  • Input Voltage 100‐240 VAC, 50/60 Hz @ 1A
  • Hospital Grade Line Cord, IEC 60320 Approved
  • Two High Breaking Capacity, Slow Blow Fuses, 4A, 250VAC

Durable flexible cushioning.  Cured silicone elastomer.  Blue, radio-opaque silicone.

  • Used in oral surgery
  • Protect the teeth, caps & crowns from accidental damage or trauma
  • High tear-resistance & tensile strength
  • Adult & child sizes
  • Sterile or non-sterile
