Airway Management

  • 3D SYSTEMS 3D Anatomical Model

    3D Systems offers a perfect combinatin of 3D printing processes, expertise and materials to integrate the right solution into your specfic medical workflow.  3D Systems On Demand anatomical Modeling services allow medical professionals to upload an STL, OBJ or PLY file, choose materials and have a non-diagnostic use model 3D printed by our team of experts.



  • 3D SYSTEMS Bone Module

    A D2P module/capability that allows the operator to either manually or auto segment distinct bone and thin bone structures.

  • 3D SYSTEMS Mesh VR (Virtual Reality)

    A  D2P module/capability that allows the operator to watch mesh files created by the D2P or imported from third parties in the Virtual Reality environment.



  • 3D SYSTEMS Teeth Module

    A  D2P module/capability that allows the operator to either manually or auto segment distinct bone, thin bone and teeth.



  • 3D SYSTEMS Vascular Module

    A D2P module/capability that allows the operator to either manually or auto segment any blood vessel of interest

  • 3D SYSTEMS Volume VR (Virtual Reality/Voxel VR)

    A  D2P module/capability that allows the operator to load the enitre scan (DICOM format) into the Virtual Reality environment without the need in prior segmentation or conversion of file into mesh.

    Scan voxels will be coloured and seen in real 3-dimensional view.

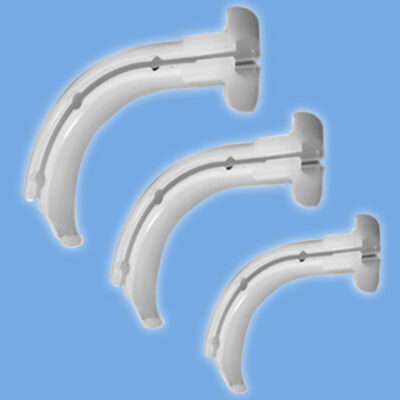

  • Berman Intubating Airway

    • Sizes 8, 9 & 10
    • Large internal diameter accommodates passage of an ETT through its centre
    • Ideal for fiberoptic bronchoscopy and procedures for guiding, positioning and protecting fibre optic equipment
    • Latex Free
  • Cook® Aintree Intubation Catheter

    Used for uncomplicated, atraumatic, endotracheal tube exchange.

    • Use of removable Rapi-Fit Adapter permits use of ventilatory device if necessary during exchange procedure
    • Catheter has larger 4/7mm lumen
    • Through-lumen design of catheter with distal sideports ensures adequate air flow
    • Blunt tip of catheter is atraumatic to internal structures
    • Centimetre marks facilitate accurate placement with shortened endotracheal tubes

    Supplied sterile in peel-open packages. Intended for one-time use.

  • Cook® Airway Exchange Catheters

    Used for uncomplicated, atraumatic, endotracheal tube exchange.

    • Use of removable Rapi-Fit Adapter permits use of ventilatory device if necessary during exchange procedure
    • Through-lumen design of catheter with distal sideports ensures adequate air flow
    • Blunt tip of catheter is atraumatic to internal structures
    • Centimetre marks facilitate accurate placement with shortened endotracheal tubes

    Supplied sterile in peel-open packages. Intended for one-time use.

  • Cook® Airway Exchange Catheters EF Soft Tip – Soft Flexible Tip with Rapi-Fit ® Adapters

    Used for uncomplicated, atraumatic, endotracheal tube or double lumen endobronchial tube exchange.

    • Distal 7cm of catheter is flexible
    • Extra firm catheter facilitates exchange of double lumen tubes
    • Use of removable Rapi-Fit® Adapter permits use of ventilatory device if necessary during exchange procedure
    • Through-lumen design of catheter with distal sideports ensures adequate air flow
    • Blunt tip of catheter is atraumatic to internal structures
    • Centimetre marks facilitate accurate placement with shortened endotracheal tubes

    Supplied sterile in peel-open packages. Intended for one-time use.

  • Cook® Arndt Emergency Cricothyrotomy Catheter Set

    Used for emergency airway access when conventional intubation and ventilation cannot be performed.

    • Airway access is achieved utilising percutaneous entry (Seldinger) technique via the cricothyroid membrane
    • Subsequent dilation of the tract and tracheal entrance site permits passage of the emergency airway
    • Supplied sterile in peel-open packages.  Intended for one-time use
  • Cook® Emergency Transtracheal Airway Catheters

    Used for emergency airway access when conventional endotracheal intubation cannot be performed. Supplied sterile in peel-open packages. Intended for one-time use.

  • Cook® Enk Fiberoptic Atomiser Set

    Used for atomising local anaesthetics in connection with flexible fiberoptic intubation techniques. The Enk Fiberoptic Atomiser Set provides adequate topical anaesthesia by atomising small doses of local anaesthetics through the working channel of the bronchoscope using flow oxygen.

    • Reduced doses of anaesthetics together with the atomiser effect enhance patient comfort
    • Repeated administration of local anaesthetic solutions and flow oxygen (“spray as you go”) keeps the front lens clear during bronchoscope advancement.

    Supplied sterile in peel-open packages. Intended for one-time use.

  • Cook® Enk Oxygen Flow Modulator Set

    Used with emergency transtracheal catheter ventilation when conventional ventilation by mask or endotracheal tube cannot be performed. The device allows manually controlled oxygen flow. Please refer to product insert prior to use. Supplied sterile in peel-open packages. Intended for one-time use.

  • Cook® Frova Intubating Introducers with Rapi-Fit® Adapters

    Used to facilitate endotracheal intubation.  Angled tip assists in proper placement beyond vocal cords.

    • Removable Rapi-Fit Adapter permits use of ventilatory device if necessary during exchange procedure
    • Optional stiffening cannula adds rigidity to all but the distal 5cm of the catheter
  • Cook® Melker Emergency Cricothyrotomy – Cuffed or Uncuffed

    Melker Emergency Cricothyrotomy Catheter Sets – Cuffed

    Used for emergency airway access when conventional endotracheal intubation cannot be performed.

    • Airway access is achieved utilising percutaneous entry (Seldinger) technique via the cricothyroid membrane
    • Subsequent dilation of the tract and tracheal entrance sire permits passages of the emergency airway
    • Catheter is cuffed to protect and control airway
    • Airway catheter has radiopaque stripe



    Melker Emergency Cricothyrotomy Catheter Sets

    Used for emergency access when endotracheal intubation cannot be performed.

    • Airway access is achieved utilising percutaneous entry (Seldinger) technique via the cricothyroid membrane
    • Subsequent dilation of the tract and tracheal entrance site permits passage of the emergency airway

  • Cook® Retrograde Intubation Sets with Rapi-Fit Adapters

    Used to assist in the placement of an endotracheal tube during difficult airway access procedures.

    • Initial access using the Seldinger technique via the cricothyroid membrane permits retrograde (cephalad directed) placement of a wire guide existing orally or nasally
    • Antegrade introduction of a hollow guiding catheter with distal side-ports and Rapi-Fit Adapters allows patient oxygenation and facilitates placement of an endotracheal tube

    Supplied sterile in peel-open packages. Intended for one-time use.

  • Cook® Staged Extubation Set

    Introduce staged extubation into your airway management strategy

    Even with well-designed protocols, postextubation airway failure remains a significant risk in all patient populations.  In addition to the obvious safety issues, it also requires additional time, documentation and resources.

    What is staged extubation?

    Staged extubation uses a Staged Extubation Wire to maintain continuous airway access and a Staged Reintubation Catheter to facilitate a successful reintubation if required.
    Benefits of staged intubation:

    • A study with an airway catheter showed a fivefold higher success rate of first-attempt reintubation¹
    • Avoidance of complications associated with failed or difficult reintubation²
    • Ability to trial extubation earlier while maintaining secure airway access¹

    Product Features

    Enhanced Patient Comfort
    Soft, tapered and kink-resistant wire is coated in a polymeric jacket to assure minimal irritation while in position.

    Maintained Access
    Staged Reintubation Catheter allows quick access and oxygen delivery to help stabilise the patient.

    Total Airway Control
    With the Staged Extubation Set, in addition to Cook’s comprehensive airway management product offering, you can control the airway from intubation, exchange, extubation and reintubation.

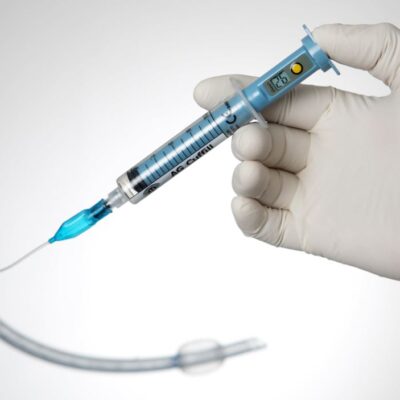

  • Hospitech Respiratory AG Cuffill

    The compact and intuitive AG Cuffill device is the most accurate solution for measuring cuff pressure and controlling the volume of airway cuffs in all clinical settings.

    The AG Cuffill is intended for air-filled cuffs and should not be used with liquids.

    • Volume 10cc
    • Measurement range 0-99 (mmHg/cmH20)
    • Measurement accuracy±2 (mmHg/cmH20)
    • Disposable
    • 100 measurements

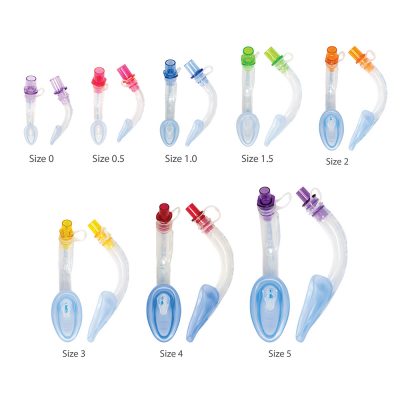

  • Mercury Medical air-Q SP Self Pressurising Masked Laryngeal Airway

    Masked Laryngeal Airway Prevents Overinflation – Take the Guesswork out of Mask Cuff Inflation

    • The new air-Q SP eliminates the extra step and guesswork for mask cuff inflation and the potential for over-inflation.  The new design allows Positive Pressure Ventilation to self-pressurise the mask cuff. The increase in cuff seal pressure occurs at the exact time you need it, during the upstroke of ventilation.
    • On exhalation the cuff decompresses to the level of the PEEP.
    • The result is a safer, efficient, low pressure seal during the majority of the case.  The cyclical lowering in intra-cuff pressure may assist in diminishing complications such as mucosal and nerve trauma that result from over-inflating traditional peripheral laryngeal mask cuffs
    • Allows intubation like the regular air-Q
    • The SP version can be used as an “everyday” airway that facilitates intubation.

    With the new Self-Pressurising, Disposable air-Q SP, there is no need to inflate the mask; it self-pressurises to the proper inflation pressure automatically.

  • Mercury Medical® air-Q® Intubating Laryngeal Mask

    Developed and designed following eight years of clinical research by American anaesthesiologist Dr Daniel Cook, the disposable air-Q is a superior passive airway device available in new infant sizes and provides:

    • Ease of placement
    • Better seal in everyday use
    • Improved intubation success

    It can facilitate the passing of any standard endotracheal tube and can also remain in place during the procedure. A disposable removable stylet is available separately to aid the removal of the air-Q while leaving the ET Tube in place.


    Please click on the following link to view an instructional video on air-Q.

    http://www.youtube.com/watch?v=2NAM7on9dUg


    Please click on the link to download the following journal article.

    Paediatr Anaesth. 2009 Jun;19(6):618-22.

    The new air-Q intubating laryngeal airway for tracheal intubation in children with anticipated difficult airway: a case series

    Jagannathan N, Roth AG, Sohn LE, Pak TY, Amin S, Suresh S.

    http://www3.interscience.wiley.com/cgi-bin/fulltext/122313299/PDFSTART
    Department of Pediatric Anesthesiology, Children's Memorial Hospital, Northwestern University's Feinberg School of Medicine, Chicago, IL, USA.

  • Mercury Medical® Mini-StatCO2® End Tidal CO2 Detector

    Fast, durable colorimetric breath indicators for visualisation of exhaled CO² to assist in verifying proper intubation.

    For patients body weight between 1-15 kgs

    • Vivid breath-to-breath colour change
    • Detects up to 50 breaths per minute
    • 24 Hour continuous performance
    • Works in 100% humidity
  • Mercury Medical® Neo-Stat CO2 End Tidal CO2 Detector

    Fast, durable colorimetric breath indicators for visualisation of exhaled CO2  to assist in verifying proper intubation.

    NeoStat:  patient body weight 0.25kg-6kg

    • The first and only disposable CO2 detector specifically designed for tiny babies with an expanded patient weight range of 0.25 kg – 6 kgs
    • Vivid breath-to-breath colour change
    • Detects 1 ml tidal volume
    • Detects up to 100 breaths/minute
    • 24-hour continuous performance
    • Works in 100% humidity
  • Mercury Medical® StatCO2 End Tidal CO2 Detector

    Fast, durable colorimetric breath indicators for visualisation of exhaled CO²  to assist in verifying proper intubation.

    For patients body weight greater than 15 kgs

    • Vivid breath-to-breath colour change
    • Detects up to 50 breaths per minute
    • 24 Hour continuous performance
    • Works in 100% humidity
